Quick Details

  • Type: Wrapping Machine
  • Condition: New
  • Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
  • Packaging Type: Bags, Barrel
  • Packaging Material: Plastic
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 220V
  • Power: 1.55kw
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Dyehome
  • Model Number: TP1650F-L
  • Dimension(L*W*H): 2650*1650*2400mm
  • Weight: 600kg
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: Pallet wrapping machine
  • Control: PLC
  • film carriage: can move up and down
  • max packing height: 2000mm
  • Film carriage type: pre-stretch
  • Max load: 2000KG
  • Packing size: (500-1100)*(500-1200)mm
  • Dia of turntabke: 1650mm
  • with weight function: Yes
  • Ramp: Yes.have

Packaging & Delivery

Packaging Details: in bubble film or wooden case for pallet wrapping machine
Delivery Detail: 3 days for pallet wrapping machine

We are professional manufacturer of pallet stretch wrapping machines.

High quality pallet film stretch wrapper with best serive and competitive market price!

Contact with us soon! Your best choice !

Automatic pallet stretch wrapping machine withPre-stretch 250% TP1650F-L and 2000mm packing height(keyword:pallet wrapping machine,stretch wrapping machine)



Pallet wrapping machine



stretch wrapping machine.Stretch wrapping machines are used to wrap stretch film around a

loaded pallet.

Film provides extra support while the products are being transported & storaged to protect them from tip, spill or from being damaged. Additionally , wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff & drink etc.





Here's how to wrap a load on the pallet wrapping machine:



  1.  Place load on turntable with forklift or pallet jack (ramp optional)
  2.  Secure film to load, press the start button
  3. .Load wrapped according to your programming
  4.  After load is wrapped, operator cuts film and secures film tail
  5. Remove wrapped pallet load and the it is ready for the next



Technical Parameters:

TP1650F-L powered Pallet wrapping machine

Size of the product to be wrapped

Min load size

(L XWxH)

500 X 500 X 500 mm

Max load size

(LXW)

1200 X 1200 mm

Max load height

2000mm (Option: 2400mm ,2600mm,2800mm,

3000mm)

Max weight

2000kgs    (Option: 2500kgs, 3000kgs)

Film Carriage

Carriage

Powered pre-stretch film carriage, stretch ratio up to 300%,

more save the stretch film.

Carriage door opens for effortless roll change and thread film

Film tension adjustable

Machine Specification

Turntable speed:

3-12 rpm adjustable

Dia of turntable

1650mm

Turntable height

85mm

Carriage

Up/down  speed

Adjustable

Power supply

 voltage

220 Volt 1 Ph - 50 Hz

Power

1.55Kw

Packing

efficiency

20-40 loads/hour

Forklifting

Front & Rear

Machine size

2650mm x 1650mm x 2400mm (LXWXH) Standard

Machine weight

650kg

Stretch Film Roll detail

Max. external

diameter (D):

230 mm

Internal diameter

76 mm

Film roll height (h):

500 mm

Film thickness:

17-35 µm



Option

Ramp

Motorised top platen

Machine color

Turntable diameter: 1800mm, 2000mm,2200mm

Weight Capacity: 2500kgs , 3000kgs

Packing height:  2400mm,2600mm,2800mm ; 3000mm, 3200mm

Button operation or touch screen operation

With scale; explosion proof type;Counter

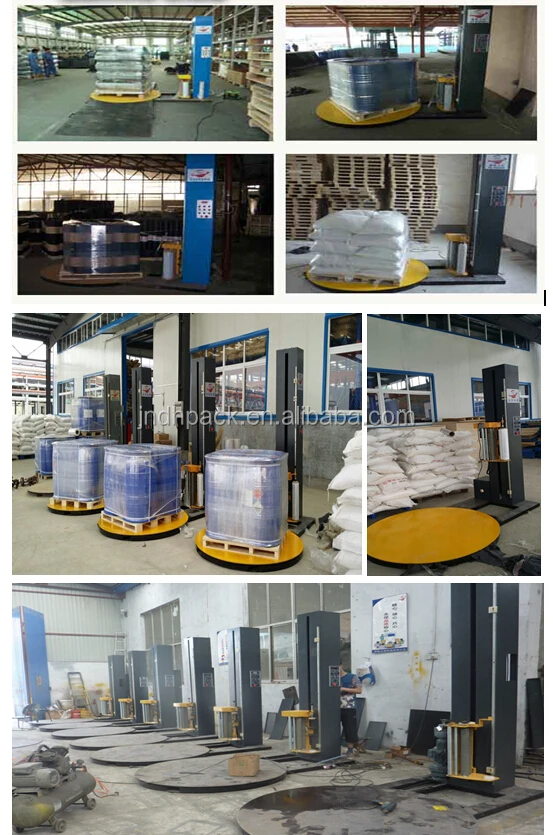

We took the stretch wrapper photoes at our our customers' factories !!

Our customers is very satisfied with our machines. It is very convenient for them to use!

Other type pallet wrapping machine:(Click the below picture)
1)M type pallet wrapping machine:
2)Pallet wrapping machine with top press:

Packaging & Shipping



1.all the machine before shipping should pass the inspect the test by assemble&debugging

engineer, after the tested video and picture approved by customer, then machine will packing

 by bubble film or standard wooden case.(wooden case need charge)

2.inner packaging is film wrapping,outer packaging is wood box for free fumigation,the

packaging size is according to the machine you ordered.





Our Services



Trade term:



1.Payment terms:100% prepaid, can be negotiation





2.Payment method:T/T,L/C, WESTERN UNION ..





3.Machinture time: 3 days





4.Shiping port:China port



 Warranty and after-sales service

1. Warranty

(1) we guaranteed that the equipment is brand new and unused;

(2) Warranty period: 12 months after the shipment.

2.After-sale service:

(1) The warranty is 12 months from signing date of the inspection report. If the inspection is

unavailable

 because of customer, the warranty period is 12 months since the receiving date of the equipment.

 (2) Under warranty:

If defects or damages occur during operation, we shall provide service support (repair data) and free

 spare parts (excluding freight). If the defects are caused by misuse or external factors, we shall

provide service and spare parts against compensation.

 3.After warranty:

We will provide paid service and spare parts.

 Control panel:

Operation is very easy



FAQ

 Why select wrapping machine:

1. Wrapping your loads by hand is hard work and can lead to repetitive motion injuries. It's also a very inefficient way to unitize loads because most people hand wrapping can only stretch the film between 5% and 10%. The harder they pull, the more the film necks down and the more times they have to walk around the load.



2.What's your packing size for your standard model pallet wrapping machine:

The max size of pallet is 1100*1200mm:(500-1100)*(500-1200)mm



3.Your standard model is 220V,but we need 110V Or 380V?

We also cam made the voltage according your require,



What's the max packing height for standard model?

The standard TP1650F-L Pallet wrapping machine,can max wrapped 2000mm,also can made according your require,Eg:2400mm,2800mm ans so on,



Company Information



Jinan Dyehome Machinery Co.,Ltd

Office Address: South area 2-1,Xinsha Industrial Park,Qinghebei Road,Huaiyin District,Jinan ,Shandong, China

Zip code:250032      Skype: dahongpallet     Contact:Angela

Office hotline:0086-531-85600091  Mobile phone: 0086-15165006008(whatsapp)



If u want visited our factory,I can pick u up in the train station or airport.

Customer visited our factory:
